TradeCanvas, the chart engine for trading apps

npm version npm downloads CI status pkg.pr.new previews No third-party dependencies TypeScript MIT license GitHub stars GitHub Sponsors

Live demo · Docs · Examples · System audit · Changelog

English · Tiếng Việt · 简体中文 · 日本語 · 한국어 · Español

**A complete trading chart for the web.** Candlesticks to Renko, 134 indicators, 69 drawing tools, live feeds and orders on the chart, on Canvas 2D or WebGL, with no third-party dependencies. Use the full `ChartWidget`, or build your own interface on the headless `Chart`, in TypeScript, React, Vue or Svelte.

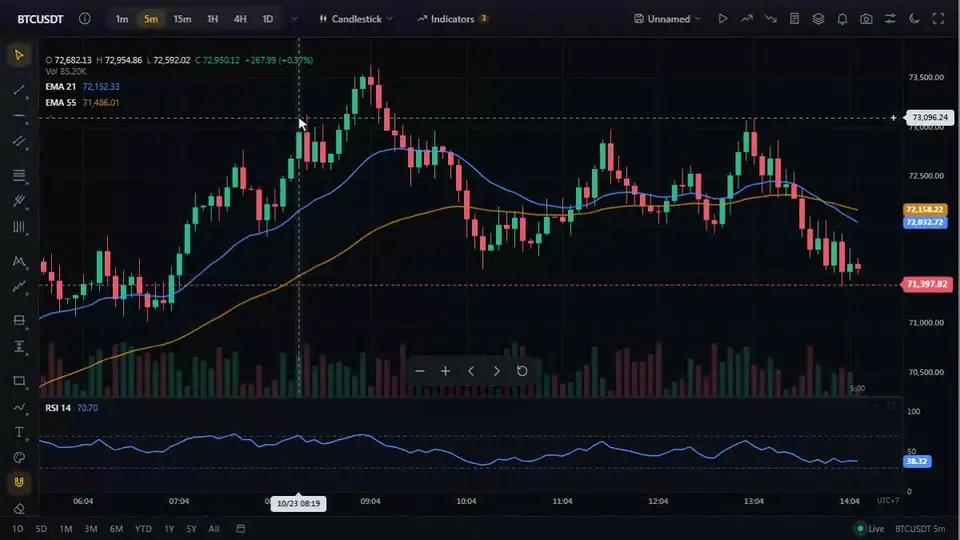

ChartWidget on a live market: EMA 21 and 55 and RSI, the crosshair, and a trend line drawn with the mouse

## Highlights - **18 chart types, 134 indicators, 69 drawing tools**, indicators on indicators, alerts on lines, undo and redo. - **Trading on the chart**: positions with live P&L, orders and stops you drag, a paper broker or your own. - **Live data** from Binance, Bybit, Coinbase and Kraken, or your own feed in about twenty lines. - **Fast**: a million bars panned at 60 fps with WebGL; a live tick in about a microsecond. - **A workspace**: grids of charts, layouts, bar replay, backtesting. - **Yours to shape**: themes, three looks, 114 switches, plugins; 30 languages; phones and apps.

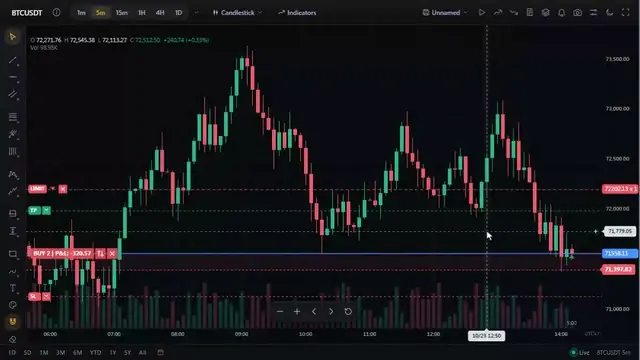

Dragging the take-profit and stop-loss of a long position; its P&L updates as the price moves

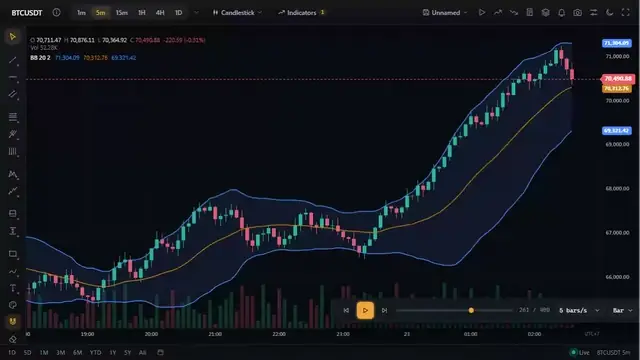

Orders you drag: stops, targets and limits move with the mouse. 		Bar replay playing a market back with Bollinger Bands
Bar replay: play a market back, then trade it on paper.

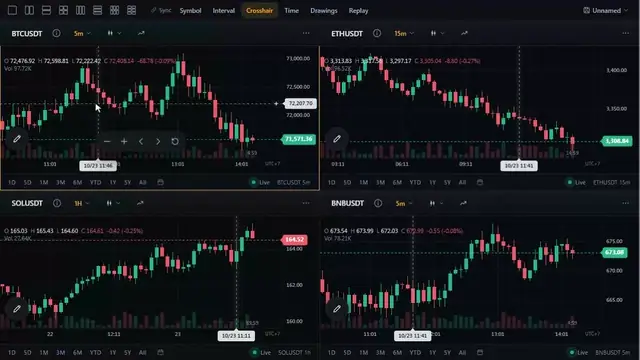

Four charts in a two-by-two grid on different intervals, the crosshair following across all of them

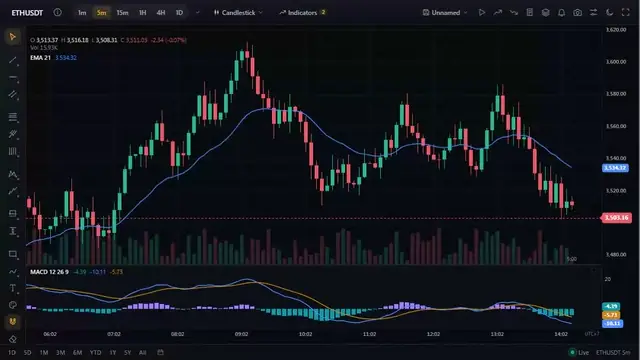

Grids: up to six charts, linked by symbol, interval, crosshair or time. 		One chart switching between the Terminal, Capsule and Studio looks, dark and light
Your look: Studio, Terminal, Capsule, light or dark, or your own tokens.

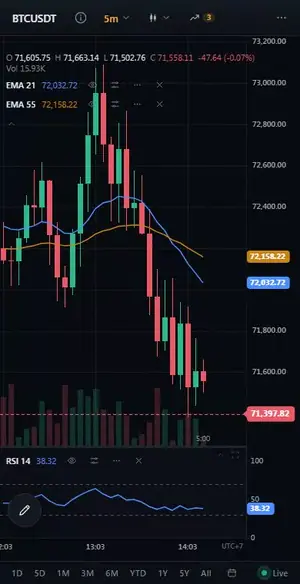

The widget on a phone: a finger pans the chart and draws a trend line
On phones: a finger pans, zooms, draws and drags orders, and the widget lays itself out for a small screen. It also runs in a WebView, React Native, Capacitor or Tauri.
## Quick start ```bash npm install @tradecanvas/chart ``` ```typescript import { ChartWidget } from '@tradecanvas/chart/widget' import { BinanceAdapter } from '@tradecanvas/chart' new ChartWidget(document.getElementById('chart')!, { symbol: 'BTCUSDT', timeframe: '5m', theme: 'dark', adapter: new BinanceAdapter(), // live data, no API key trading: true, }) ``` The headless `Chart` takes your own bars (`chart.setData(bars)`) and leaves the interface to you. For React, Vue and Svelte, `@tradecanvas/react`, `/vue` and `/svelte` wrap it in a component with the same props. ## Documentation [Getting started](https://tradecanvas.dev/docs/getting-started/) · [API](https://tradecanvas.dev/docs/api/) · [Indicators](https://tradecanvas.dev/docs/indicators/) · [Drawing tools](https://tradecanvas.dev/docs/drawing-tools/) · [Realtime](https://tradecanvas.dev/docs/realtime/) · [Trading](https://tradecanvas.dev/docs/trading/) · [Styling](https://tradecanvas.dev/docs/styling/) · [Frameworks](https://tradecanvas.dev/docs/frameworks/) · [Plugins](https://tradecanvas.dev/docs/plugins/) · [Phones and apps](https://tradecanvas.dev/docs/embed/#mobile-app) · [Performance](https://tradecanvas.dev/docs/performance/) The docs are in English, Tiếng Việt, 简体中文, 日本語, 한국어 and Español. Measurements, limits and how it is tested are on the [system audit](https://tradecanvas.dev/audit/). ## AI coding tools The agent skill in [`skills/tradecanvas`](https://github.com/bonguynvan/tradecanvas/blob/main/skills/tradecanvas/SKILL.md) teaches coding agents the API, with examples that CI type-checks. In Claude Code: ```text /plugin marketplace add bonguynvan/tradecanvas /plugin install tradecanvas@tradecanvas ``` Other agents (Cursor, Codex, Copilot and more): `npx skills add bonguynvan/tradecanvas`. Without a skill, [`llms.txt`](https://tradecanvas.dev/llms.txt) and [`llms-full.txt`](https://tradecanvas.dev/llms-full.txt) give an assistant the docs in one file. Changing TradeCanvas itself with an agent? [AGENTS.md](https://github.com/bonguynvan/tradecanvas/blob/main/AGENTS.md) holds the repo's rules. The MCP server `@tradecanvas/mcp` looks up indicators, drawing tools, options, feature switches and style keys in the library's own catalog, and checks an options object before it is used ([set it up in other clients](https://tradecanvas.dev/docs/getting-started/#ai)): ```bash claude mcp add tradecanvas -- npx -y @tradecanvas/mcp ``` On Windows outside WSL: `claude mcp add tradecanvas -- cmd /c npx -y @tradecanvas/mcp`. In Git Bash, which runs the `!` commands of Claude Code on Windows, write `//c`: Git Bash turns `/c` into a path. ## More - **Packages**: [`@tradecanvas/chart`](https://www.npmjs.com/package/@tradecanvas/chart) (the chart and the widget), [`react`](https://www.npmjs.com/package/@tradecanvas/react) · [`vue`](https://www.npmjs.com/package/@tradecanvas/vue) · [`svelte`](https://www.npmjs.com/package/@tradecanvas/svelte), and [`analytics`](https://www.npmjs.com/package/@tradecanvas/analytics) for backtests, and [`mcp`](https://www.npmjs.com/package/@tradecanvas/mcp) for coding agents. - **Previews**: every pull request and commit on `main` is on [pkg.pr.new](https://pkg.pr.new/~/bonguynvan/tradecanvas), installable before a release. - **Browsers**: Chrome 80+, Edge 80+, Firefox 80+, Safari 14+. - **For businesses**: no logo to show, nothing to apply for; the [For businesses](https://tradecanvas.dev/business/) page answers an IT review. business@tradecanvas.dev - **Related**: [bo-grid](https://github.com/bonguynvan/bo-grid), a fast Svelte data grid for the table half of a trading desk. - **Contributing**: questions in [Discussions](https://github.com/bonguynvan/tradecanvas/discussions), bugs in the issues, and [CONTRIBUTING.md](https://github.com/bonguynvan/tradecanvas/blob/main/CONTRIBUTING.md) for pull requests. Security issues: [SECURITY.md](https://github.com/bonguynvan/tradecanvas/blob/main/SECURITY.md). - **Sponsor**: TradeCanvas is free and built in the open; [GitHub Sponsors](https://github.com/sponsors/bonguynvan) keeps it going. [MIT](https://github.com/bonguynvan/tradecanvas/blob/main/LICENSE)
